Volocity - 3D & Time Lapse Viewing, Analysis, Quantitation, Tracking and Deconvolution
Note: This information page is available on line at: http://microscopy.unc.edu/Volocity

What is Volocity:

Volocity (Perkin Elmer/formerly Improvision) is a 3D and time lapse (4D) imaging program for:

• Volume visualization - volume rendered, ray tracing, orthogonal views, maximum projection, stereo, VR
• 3-D/4-D Image processing
• Analysis
• Object measurement
• Tracking (including 3-D)
• Co-localization analysis in 2-D or 3-D
• Deconvolution - blind or measured point spread function for confocal or widefield microscopes
• Stack realignment

It can use data from diverse sources such as confocal microscopes & widefield microscopes.  Volocity can easily import z-series &/or time lapse image sequences with from the Zeiss 510/7x0 or Leica SP2/SP5/SP8 or Olympus FV1000 or Biorad or Perkin Elmer confocal programs with meta data, C-Imaging data, as well as .tif and other image format image series.

Where can it be Used:

Volocity is installed on the image processing workstations in the Michael Hooker Microscopy Facility:

• \\Schott high performance work stations - (Windows 7 - 64 bit, 8 GByte RAM, 1 GB OpenGL video)
• \\Brewster - (Windows 7 - 64 bit, 16 GByte RAM, 640 MB + shared ram Video)
• \\Nomarski - (WindowsXP,  Volocity version 6.0 or later)
• On your computer!  You will need to have both an MHmicroscopy account and also have it activated to use the Volocity license server.  Volocity runs on Macs, Windows 32 & Windows 64 bit.  Obtain the appropriate Volocity software from the Perkin Elmer Volocity web site, install it, and connect to the license server called minsky.med.unc.edu:15002 (or 152.19.58.205:15002) the Michael Hooker Microscopy license server (see section 1. below).  For adequate performance your computer should have sufficient RAM (> 1 GBytes or with Vista or Windows 7 >=3 GBytes) and a high performance OpenGL video card.  Volocity installation software version 6.3 or later (Jul 2013): Windows 64 bit   |   Windows 32 bit   |   Mac.  Newer versions, if available, will be available at the Perkin Elmer Volocity web site.

Who Can Use Volocity:

Users will need to arrange to have access to this software from facility personnel before being able to use the license server.  Most users will use their MHmicroscopy user name and password, which must be activated for use with Volocity by facility personnel and is easily and quickly done.  If you do not have an MHmicroscopy account please fill out this New User Information form and then contact Michael or Neal.  Visualization and Quantification and Restoration (deconvolution) licenses will cost $3.00, $5.00 & $6.50 per hour for 1, 2 & 3 modules respectively.  Much analysis done only requires one license and not two or all three.  The Volocity LE viewer and image database organizer is free, but an activated account and connection to the licence server is required.

License Availability:

Volocity module licenses are available individually on a first come first served basis to users with Volocity activated MHmicroscopy accounts.  Licenses availability is shown at: http://minsky.med.unc.edu:15003   (or http://152.19.58.205:15003)

Getting your MHmicroscopy account activated or a new account for using the Volocity License server:

• Contact Michael or Neal
• Available Modules (please choose selected modules carefully in order to have the desired features available):
  • Volocity (Volocity LE) - "Light Edition" Image importing/exporting, cropping, resizing, viewing and image library organization only - Instant access to Volocity (LE) - free!
  • Volocity Visualization (Vis) - 3D rendering - $3.00/hr
  • Volocity Quantitation (Quant) - Measurement, tracking & co-localization - $3.00/hr
  • Volocity Restoration (Restor) - Deconvolution  (Deconvolution is also available at on the workstation call \\Normaski using Metamorph, and \\Brewster using SimplePCI) - $3.00/hr
• Combined Modules
  • Volocity Vis & Quant - 3D rendering and measurement, tracking & co-localization - $5.00/hr
  • Volocity Vis & Restor - 3D & Deconvolution - $5.00/hr
  • Volocity Vis & Quant & Restor - Deconvolution - $6.50/hr
• For (LE) light version only instant access  username=guest password=Volocity(LE).  Please contact facility personnel and obtain a permanent account.

• Volocity uses an on line license server to assign a user license instance to run the program.  See section 1. below.
• Users who have not used Volocity via the license server should contact facility personnel to obtain an account (Michael is happy to respond to after hours requests, if available) or have their MHmicroscopy account enabled for access to the Volocity license server.
• Perkin Elmer/Improvision (Volocity) Technical Support Desk 866-310-0932   (781-402-0134   781-402-0251 fax )
• Volocity's latest available manual:
  • Dec 2009 version 5.3 manual:
    • http://microscopy.unc.edu/Resources/Volocity/VolocityUserGuide53.pdf
  • Sep 2011 version 6 manual
    • http://microscopy.unc.edu/Resources/Volocity/VolocityUserGuide60.pdf
  • From Perkin Elmer/Improvision/Volocity web site :
    • http://www.improvision.com/support/guides/volocity.php
• Application examples from Improvision
• \\Schott - Volocity v6 (64 bit) Windows 7 (64-bit) dual CPU, 8 GByte RAM, ATI Radeon 5700 with1 GB RAM.
• \\Brewster - Volocity v6 (64bit) Windows 7 (64-bit) quad CPU, 16 GByte RAM, Video nVidia 8600 + 640 MB+shared RAM
• \\Nomarski - Volocity v6 (32-bit). WindowsXP with 3.4 GByte RAM

1.  Using Volocity

1.1  Connecting to the license server:

• Start Volocity

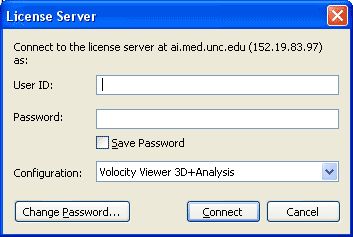

• If the "Connect to the license server at" shows minsky.med.unc.edu or 152.19.58.205 then enter your MHMF user account name and password
•
• Note: Change Password button will only work to change your password when on campus or using an off campus computer connected to UNC via VPN.  An Onyen account is required to use UNC's VPN.

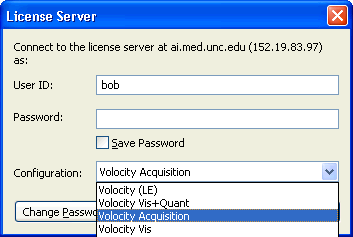

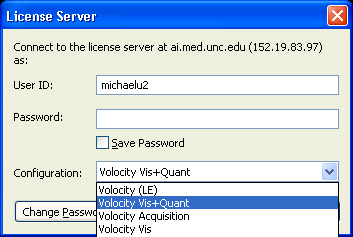

• And choose an appropriate configuration - Generally Vis or Vis+Quant or Vis+Restoration or Vis+Quant+Rest  (Restoration=deconvolution)

• 3D Visualization

  or

  Acquisition (Pathology Department only)

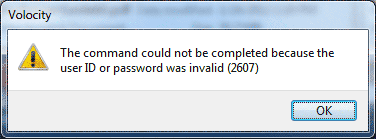

• If your password is expired you will get this message.  Expired passwords can be change at almost any Windows computer on campus. (Note the Change Password button does not work due to heightened server security)

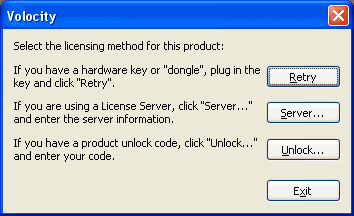

  • If the server is not listed as minsky.med.unc.edu or 152.19.58.205 then press the ESC key and press the Server button
  •

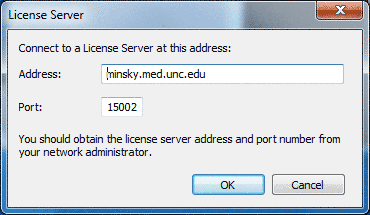

  • Enter minsky.med.unc.edu or 152.19.58.205 and port 15002 (not port 15003 which is the availability status web page)
  •

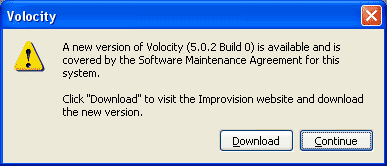

• Skip downloading any new software and just push the Continue button
•
• Volocity should run if a license is available

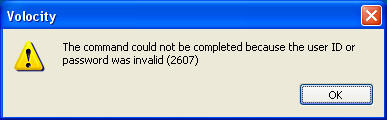

• If you get this invalid password screen then either the user name or password provided are incorrect or your password has expired
  •
  • To determine if your password has expired:
    • Login at the keyboard of a facility computer and you will be prompted for a new password if it is expired
    • Contact facility personnel (note passwords should not be sent by e-mail.  Phone or texting is more secure)

1.2  Opening/Creating a Volocity Image Library:

Loading Images  |  Displaying orthogonal view  |  Rendering  |  Creating a movie sequence

1.4  Viewing Modes

1.5  Enhancements/Filtering

1.6  Selections/cropping

2.  Access to Volocity (Accounts)

Please contact MHMF personnel in order to setup an account or have your existing MHmicroscopy account enabled for Volocity on the minsky.med.unc.edu:15002 license server.

3.  Links:

• Improvision  (http://improvision.com)
• Volocity manual:
  • Latest available: try http://cellularimaging.perkinelmer.com/pdfs/manuals/VolocityUserGuide.pdf
  • Volocity  v6.0+  2011 manual: http://physiology.med.unc.edu/Resources/Volocity/VolocityUserGuide60.pdf (31 MByte)
  • Volocity  v5.3    2009 manual:  http://physiology.med.unc.edu/Resources/Volocity/Volocity5UserGuide-090114.pdf (
