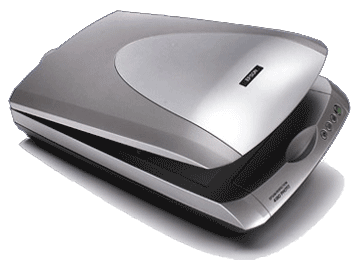

Epson Perfection 4180 Photo Scanner

Location - TB 6033a, connected to workstation Young

The Epson scanner is no longer available.  Please use the HP 5470c scanner instead!

High resolution flatbed color image scanner with transmitted light scanning for film negatives or blots.  Please contact facility personnel if assistance is required.

Technical Specifications:

Photoelectric Device

Epson MatrixCCD™ line sensor

Maximum Scan Area

8.5" x 11.7" (216mm x 297mm)

Transparency Scan Area

2.25" x 10.5"

Optical Resolution

4800 dpi

Hardware Resolution

4800 x 9600 dpi maximum with Micro Step Drive™ technology

Maximum Resolution

12,800 x 12,800 dpi with software interpolation

Color Depth

48-bit internal/48-bit external

Grayscale Depth

16-bit internal/16-bit external

Optical Density

3.4 Dmax

Scanning Speed

Monochrome (4800 dpi) 17 msec/line (approx.)

  Full color (4800 dpi) 17 msec/line (approx.)
